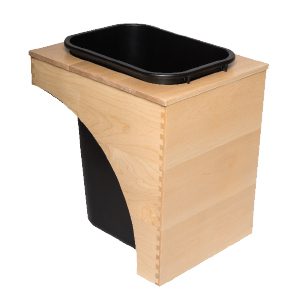

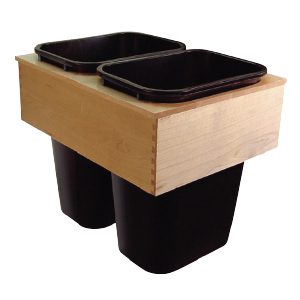

Waste Bin Pull-Outs are available as Top or Bottom Mount. They can be ordered as 1 or 2 small or large bins, or a combination of 1 small and 1 large bin. Bins may be ordered finished or unfinished, in any available species.

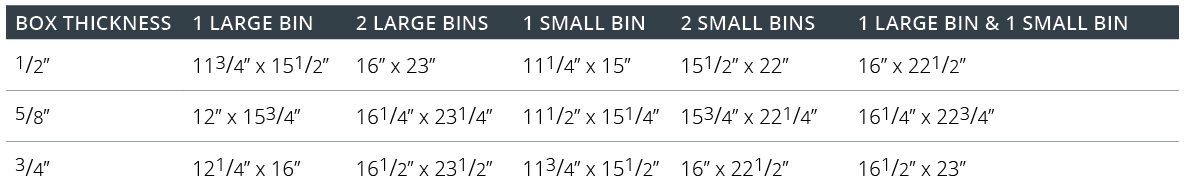

Minimum Top Sizes, Top or Bottom Mount, including the 1/4″ overhang on each side (1/2″ overall):
WASTE BIN SIZES
Large Bin—15 1/4” x 11 1/4” x 20” high
Small Bin—14 1/2” x 10 1/2” x 15” high
Box tops are 1/2” thick with a 1/4” overhang on the sides*, flush on the front and back.
Bottom Mounted Waste Bin Pull-Outs do not have an overhang unless requested.
Bins and side-mount drawer slides are sold separately.
