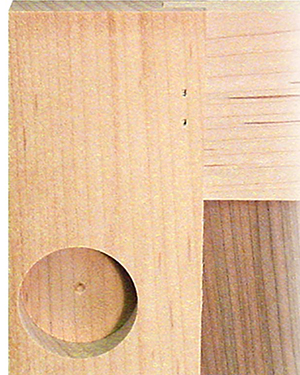

BORE FOR EUROPEAN HINGES
- 3 1/2″ on center from the top and bottom of the door
- 35mm bore
- 3mm DBE standard*
- 1/2″ Deep
- Not available with A, B, C, C-2-BB, CH-2, D, E-2, P, Q, R, or Shaker Bead edge profiles
- Additional boring for doors over 48” high

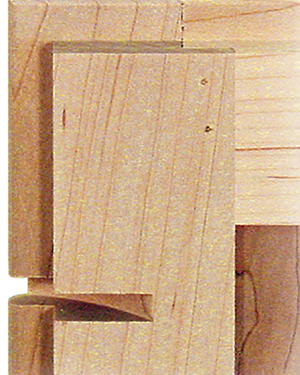

Keystone carries Blum BLUMOTION, soft-closing European hinges, and Youngdale knife hinges.**
*DBE = the distance from the edge of the door to the edge of the cup bore.
**These hinge pictures are for the purpose of illustration only and may not accurately represent the exact product you order.
