Options & Sizes - Keystone Wood Specialties

Assembly Preferences

Unassembled without bottoms
Unassembled with bottoms
Assembled and sanded, ready to finish
Assembled and prefinished*

*Standard finish for drawer boxes is two coats of catalyzed varnish.

WOOD SPECIES*

Alder
Aromatic cedar
Ash
Cherry
Mahogany
Maple, hard
Maple, soft
Paulownia
Pine, clear
Pine, knotty
Poplar
Red oak
Walnut
White oak, quartersawn

*For additional wood species not listed above,
call customer service for availability.

Thickness options

Front, back, and sides: 1/2”, 5/8”, or 3/4”* thick
Plywood bottoms: 1/4” (most species), 3/8” (maple only),
or 1/2” (maple only**)

*For 3/4” thick boxes, undermount slides are available in case lots only.

**Other species may be available upon request.

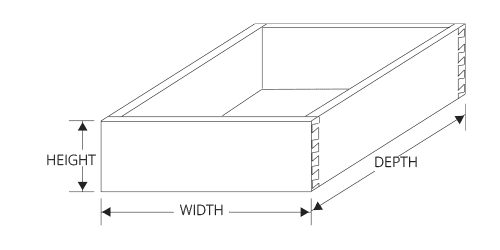

MINIMUM SIZES

Height: 2” (increases in 1/2” increments)
Width: 4” (increases in 1/16” increments)
Depth: 6” (increases in 1/16” increments)

Height measured in 1/2” increments only.

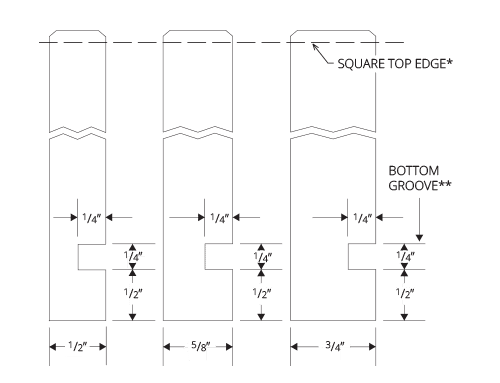

DRAWER BOX SIDES

Chamfered edges unless otherwise specified
Square top edges available upon request*

*Square top edges will render the box
approximately 1/8” undersized in height.

**Standard bottom groove placement is
1/2” from the bottom. Custom placement is available.

NOTCHING FOR UNDERMOUNT
DRAWER SLIDES

Drawers can be notched for all makes of undermount slides. The standard notch width is 2” for most slides, including Blum BLUMOTION soft-close drawer slides. Custom notching is available.
